A product for the infiltration of rain water or treated water. It has the PP fibre technology developed by ATE that does not require the use of gravel.

INFILTRATUBE is a 3-in-1 product that can be used in all ground types. With its SN4 resistance rating and rigidity, the slope angle is easy to adjust when installing.

We will assist you if you want to determine the dimensions of the INFILTRATUBE for your water infiltration system.

Effectively manage rainwater or clear water infiltration with INFILTRATUBE

INFILTRATUBE is specially designed to promote the controlled infiltration of rainwater or water from an approved treatment system directly into the ground. It meets the requirements of professionals in urban planning, landscape infrastructure and underground rainwater networks. Robust and reliable, it helps to limit runoff and contributes to sustainable water management.

What is INFILTRATUBE?

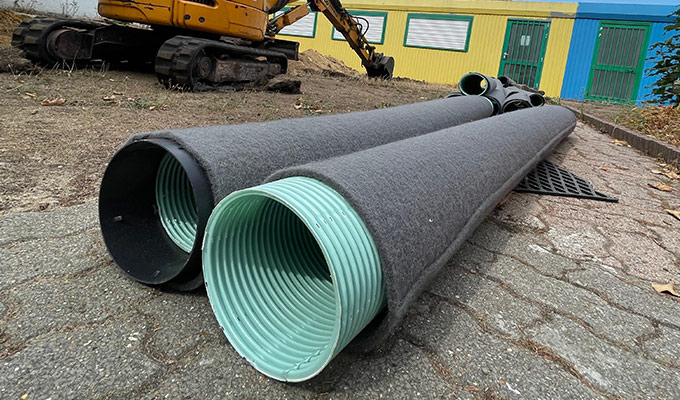

INFILTRATUBE is a perforated PVC corrugated pipe designed to allow rainwater or water from an approved treatment system to infiltrate into the ground. Thanks to its perforations distributed throughout the structure, it facilitates water dispersion, promoting groundwater recharge.

It is particularly suitable for infiltration systems buried in permeable soils, particularly for plot-based water management or the creation of infiltration systems.

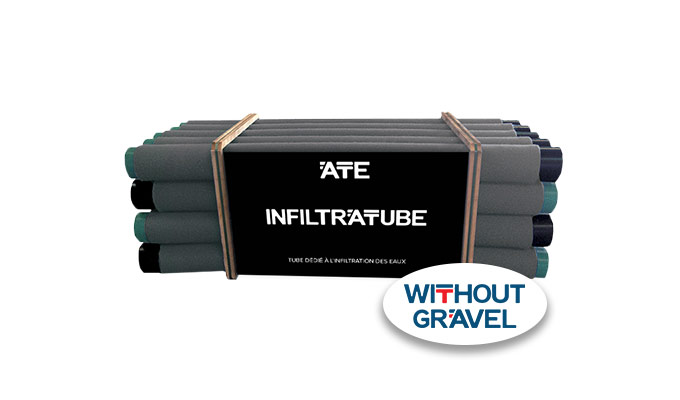

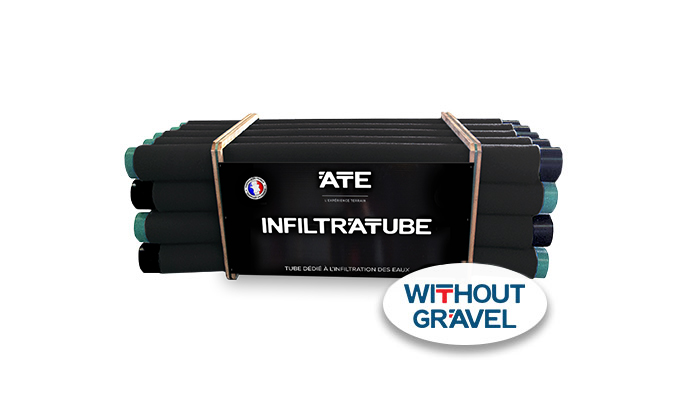

It benefits from the FIBRE PP technology developed by ATE, which allows for installation without gravel.



The advantages of plot infiltration with INFILTRATUBE

There are rainwater infiltration solutions using pipes and gravel, but they require complex handling operations.

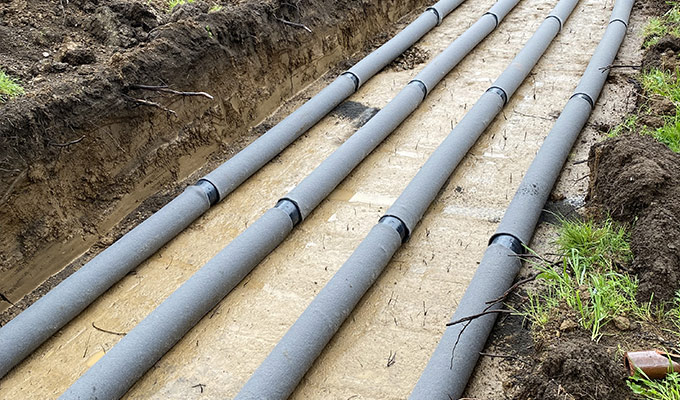

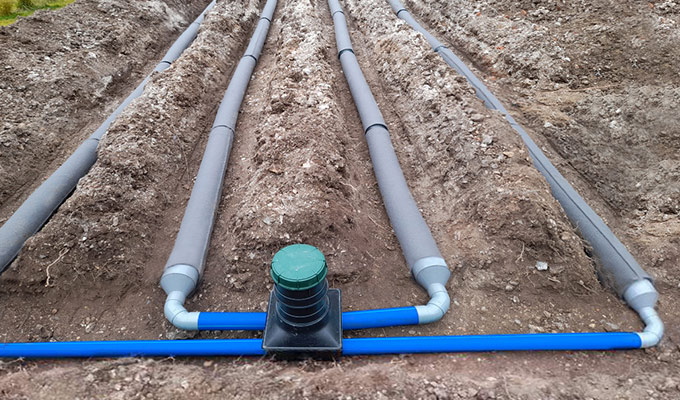

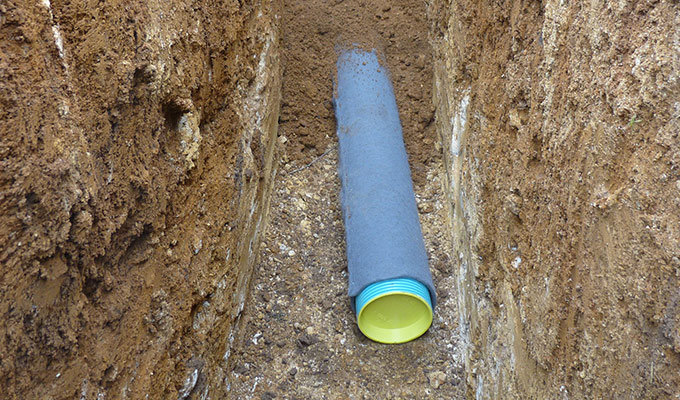

ATE has developed INFILTRATUBE, a gravel-free system that is quick and easy to install. Simply dig a trench at least 5 metres from a building, lay the device and backfill. Its strength and rigidity make it easy to install, even on different types of soil.



A reliable and durable technical solution

  • 360° perforated tube ensuring uniform infiltration along the entire length
  • SN4 rigidity class, offering excellent resistance to soil loads
  • Thanks to its strength and rigidity, the slope can be adjusted very quickly during installation.
  • Suitable for underground installation under green spaces, light parking areas or pedestrian zones

INFILTRATUBE is a 3-in-1 product that can be installed in all types of soil.

Why choose ATE solutions and how to calculate the dimensions of the infiltratube?

Regulations on rainwater management are changing and many property owners are looking for an infiltration solution for their land.

As a specialist in drainage, rainwater management and infiltration, ATE supports professionals with robust, standard-compliant products that are adapted to today’s sustainable development challenges. Our teams will advise you on the most suitable technical solutions for your infiltration project.

The size of the INFILTRATUBE is determined based on the amount of water to be infiltrated and the permeability of the soil.
